DATV Update
Simon Brown • December 17, 2024
DATV Update, December 17th 2024
So, here's an update on my DATV project. This is a pure software solution for DATV (DVB-S2) which can be used with Pluto, Lime (later) and other SDRs. No extra hardware such as the BATC MiniTiouner is needed.
Summary
Good progress is being made:

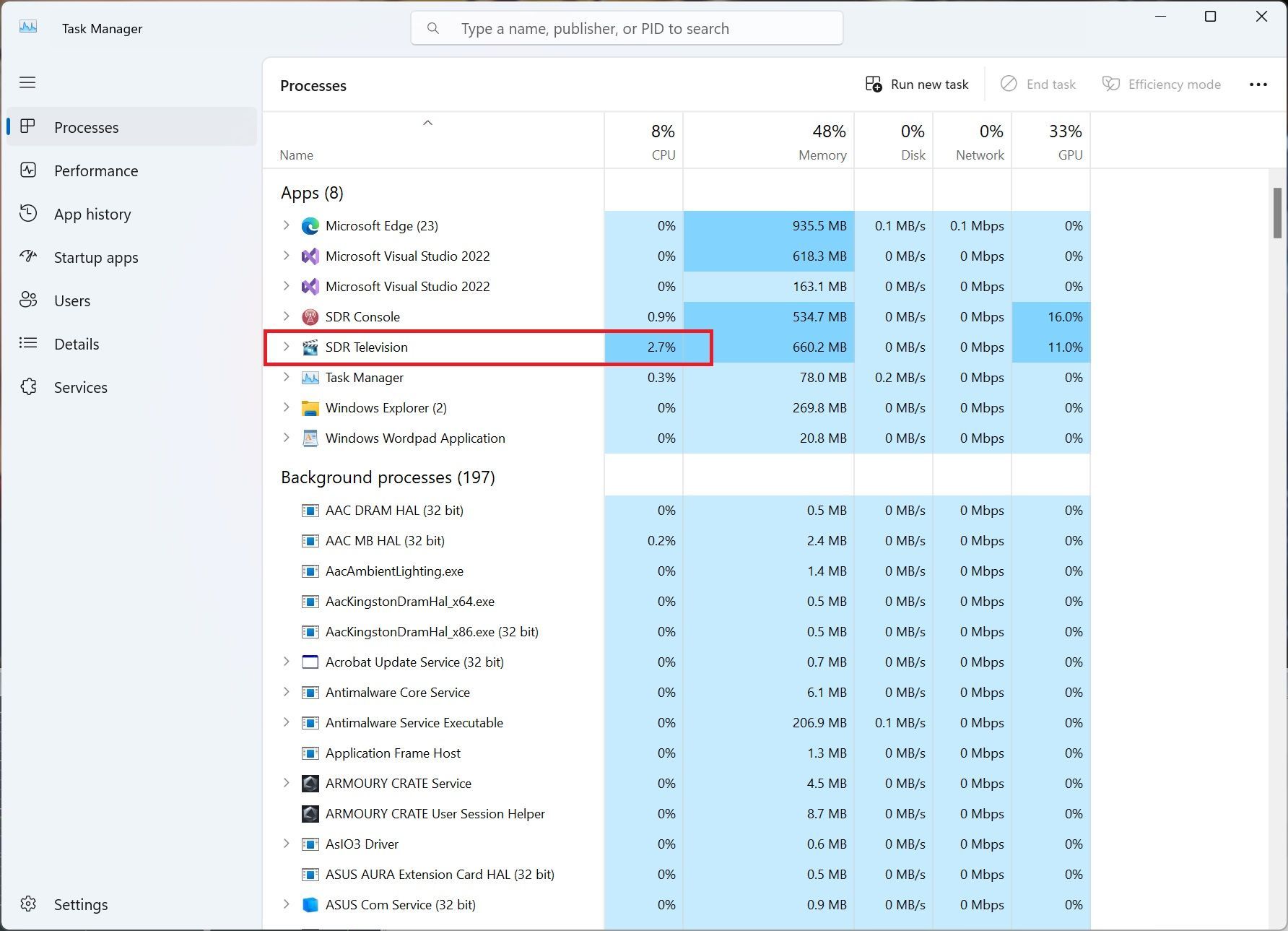

- CPU load is low, see Task Manager screenshot below, CPU is i5-13600F at only 2.7%. Low CPU is important for this type of application it shows good design and implementation
- Can view QO-100 transmissions:
- BATC Thursday evening net hosted by Martin, G4FKK
- Sunday afternoon WWW net hosted by Gary ZS6YI
- Transmit code is all in place, tested via a loopback option where the transmit IQ data is fed back into the receive chain.
- Currently only Normal frames (64,800 bits) are supported. Short frames (16,200 bits) will be supported.
- All FEC rates work, the BCH code is been highly optimised.
Next step is some live transmissions before the end of December 2024!
And here's a video!
