Reuter RSR200B
Simon Brown • March 11, 2026
First Impressions
The RSR200 is a high performance black box receiver (“SDR”) for direct digitization of RF signals up to above 250 MHz and feeding SDR programs on PCs with data rates up to 90 MS/s (16 bit I/Q, lower rates with 24 bit resolution). Source https://www.reuter-elektronik.com/html/rsr200.html.

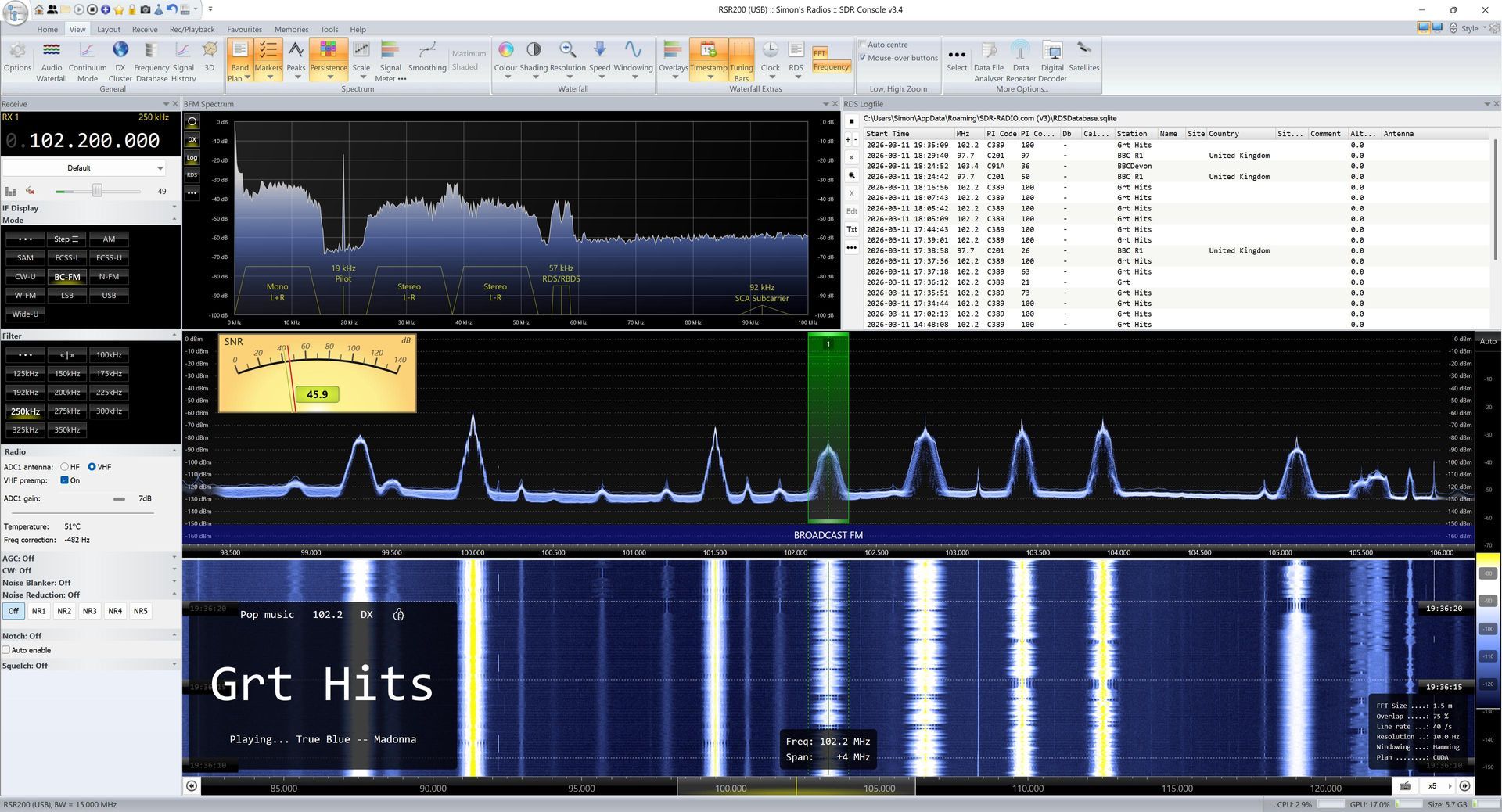

Above is an image of SDR Console using a RSR200B at 15 MHz bandwidth, antenna is an 8 element Yagi from Innov Antennas. I have started with the USB interface in single channel mode. The API is well documented, it took less than three days to get this SDR integrated into SDR Console.
Using 16-bit ADCs instead of tuner chips is an advantage - apart from antenna selection, the only adjustment you may use is the gain control which ranges from -28dB to +7dB.
Price: € 1,090.00 see Technical Documentation.
When TCP and dual channel mode is supported I'll update this post, in the meantime here's a test report from Fenu-Radio .
